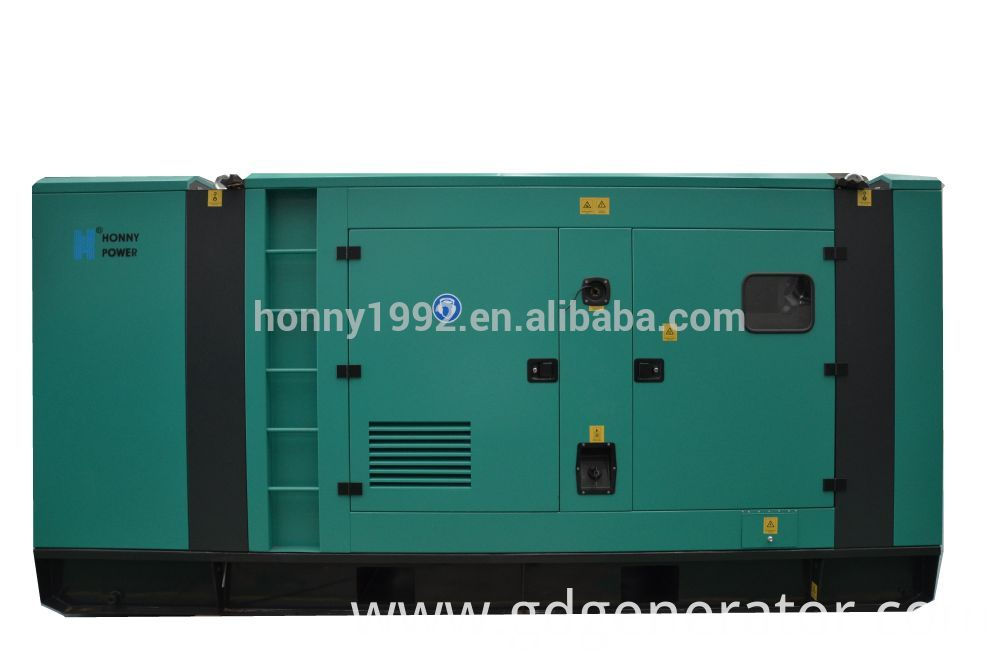

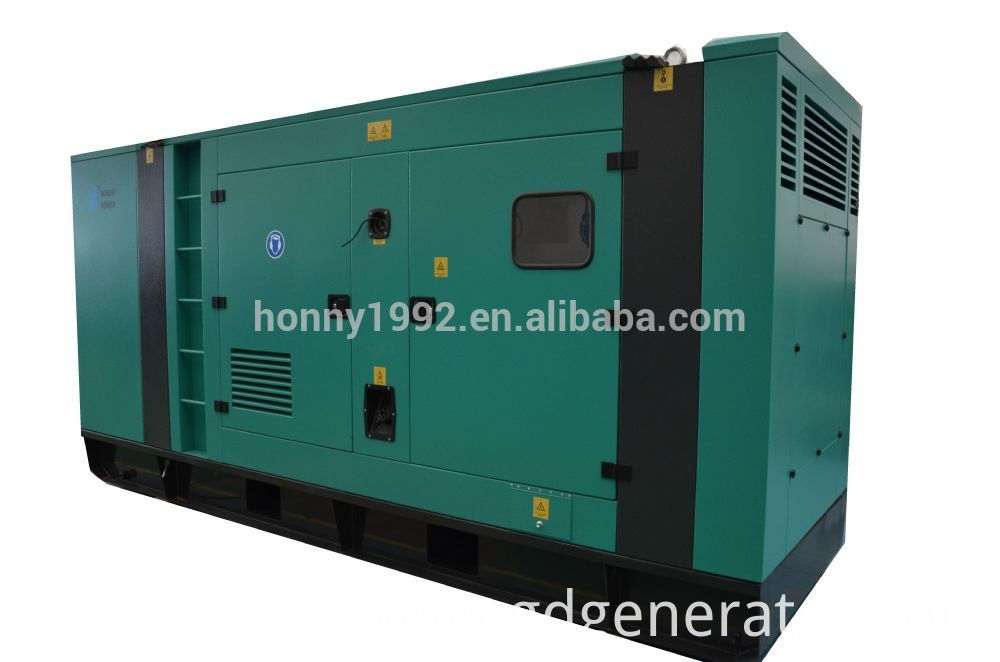

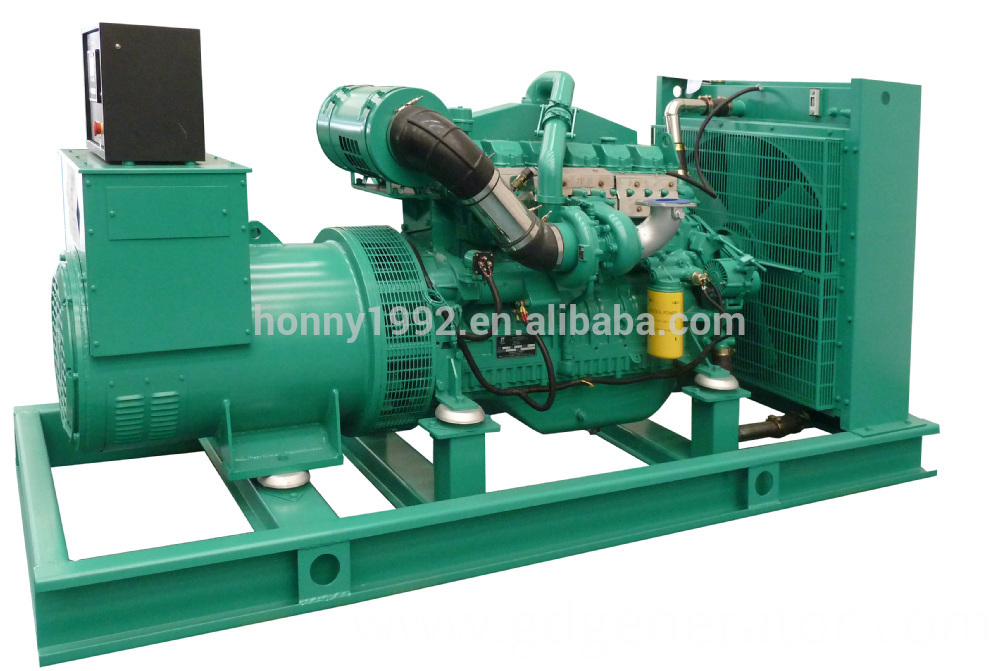

Googol 200kW Silent Genset Diesel Generator

Basic Info

Model No.: HGM275

Product Description

Googol 200kW Silent genset Diesel Generator

Generator set Model

HGM275

Generator set Prime Power (KW/kVA)

200/250

Engine Ratings:

Engine Speed

(RPM)

1500

Generator set Frequency

(Hz)

50

Engine Standby Power (LTP)

(kW)

252

Engine Prime Power (PRP)

(kW)

230

Typical Generation Prime Output

 (kVA)

250

Typical Generation Prime Output

 (kW)

200

Typical Generation Continuous Output

 (kVA)

250

Typical Generation Continuous Output

 (kW)

200

Typical  Alternator Efficiency

92.5%

Power Factor



0.8

Basic Performance Datasheet

Aspiration Type



Turbocharger, air-water after-cooler

Injection Type



Direct Injection

Configuration



In Line

No. of Cylinders



6

Displacement

(liters)

12.8

Bore

(mm)

128

Stroke

(mm)

166

Compression Ratio



15.5:1

Fuel System

Governor Type



Electrical Control

Engine Output at generator set prime output

(kW)

230

Fuel Consumption at 75% of generator set prime output

(l/h)

42.47

Fuel Consumption at 100% of generator set prime output

(l/h)

56.37

Lowest Fuel Consumption Ratio

g/kW.hr

204.66

Intake & Exhaust System(On Standby Output)

Combustion Air Consumption

(m³/min)

18.90

Exhaust Gas Flow

(m³/min)

23.12

Exhaust Flange Diameter

(mm)

125

Electrical System

Starting Voltage

(V)

24

Starting Motor Capacity

(kW)

1*6.6

Minimum Battery Capacity

(Ah)

2*150

Generator Set Dimension

Length

(mm)

3000

Width

(mm)

1150

Height

(mm)

1550

Open type

(kg)

2150



Contact us if you need more details on Genset Diesel Generator. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 200kw Silent Genset、200kw Diesel Generator. If these products fail to match your need, please contact us and we would like to provide relevant information.
