15.0mm pitch 600V 125A 2 position screw terminal

  • 15.0mm pitch 600V 125A 2 position screw terminal
  • 15.0mm pitch 600V 125A 2 position screw terminal
  • 15.0mm pitch 600V 125A 2 position screw terminal
  • 15.0mm pitch 600V 125A 2 position screw terminal

15.0mm pitch 600V 125A 2 position screw terminal

Basic Info

Model No.: XK137T-15.0-2P

Product Description

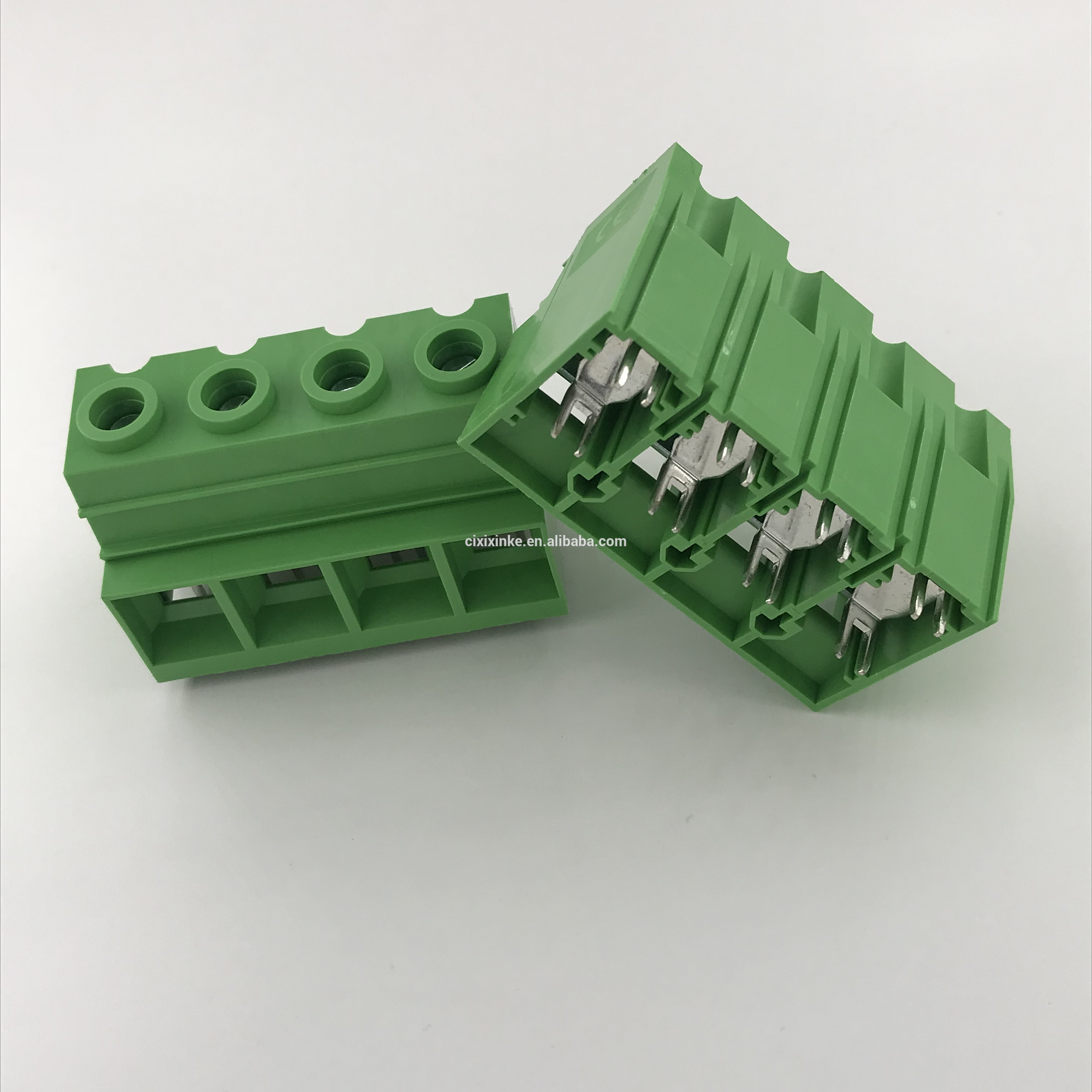

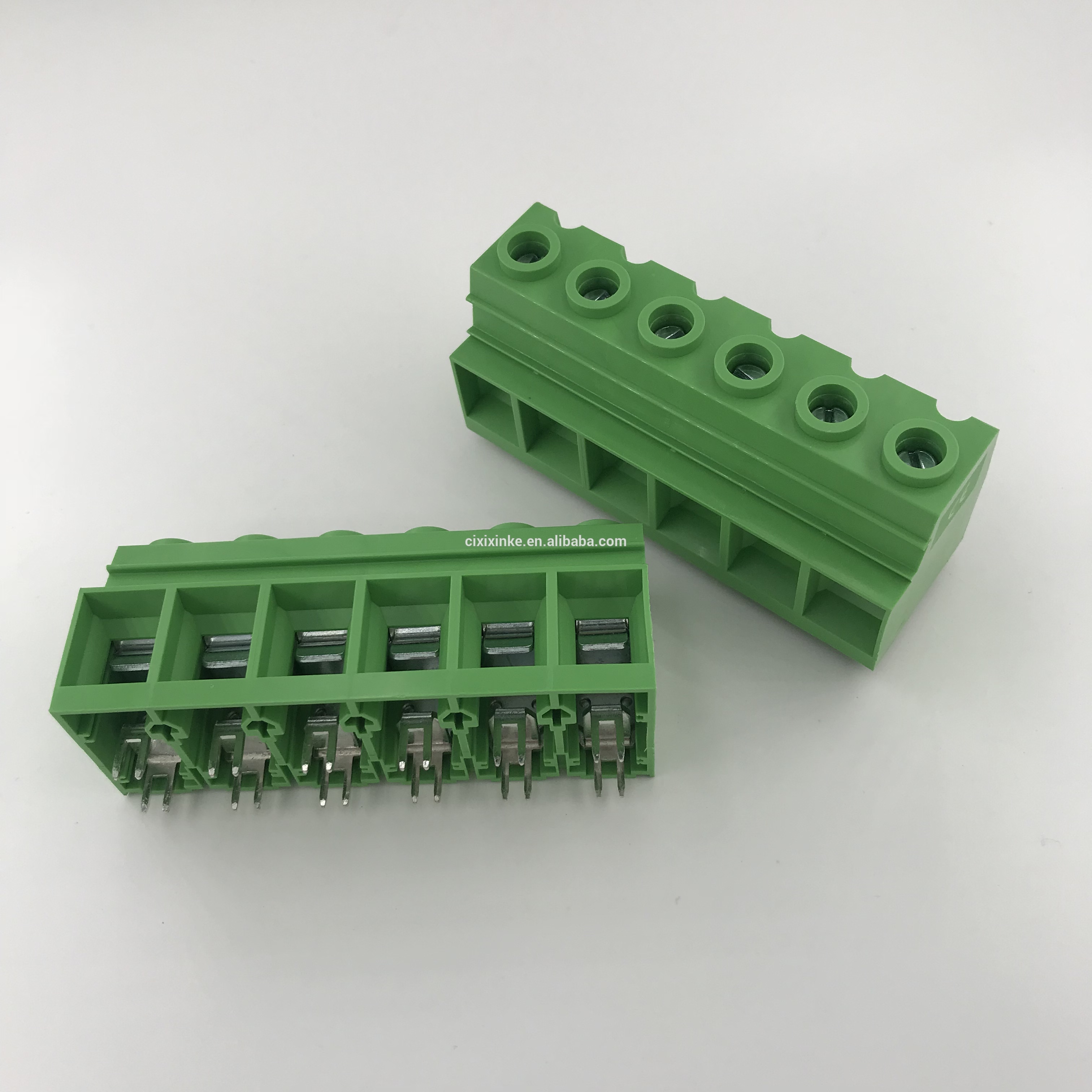

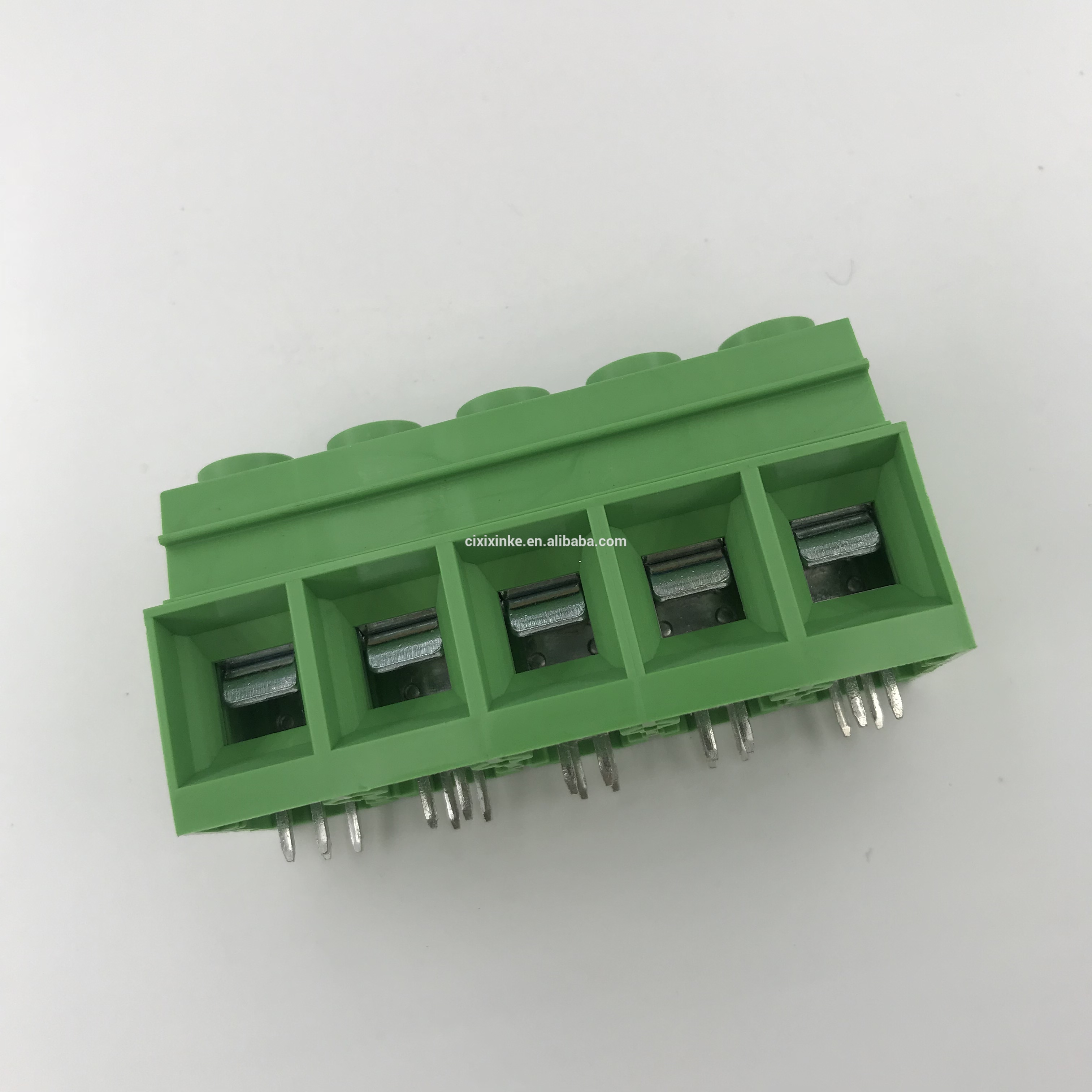

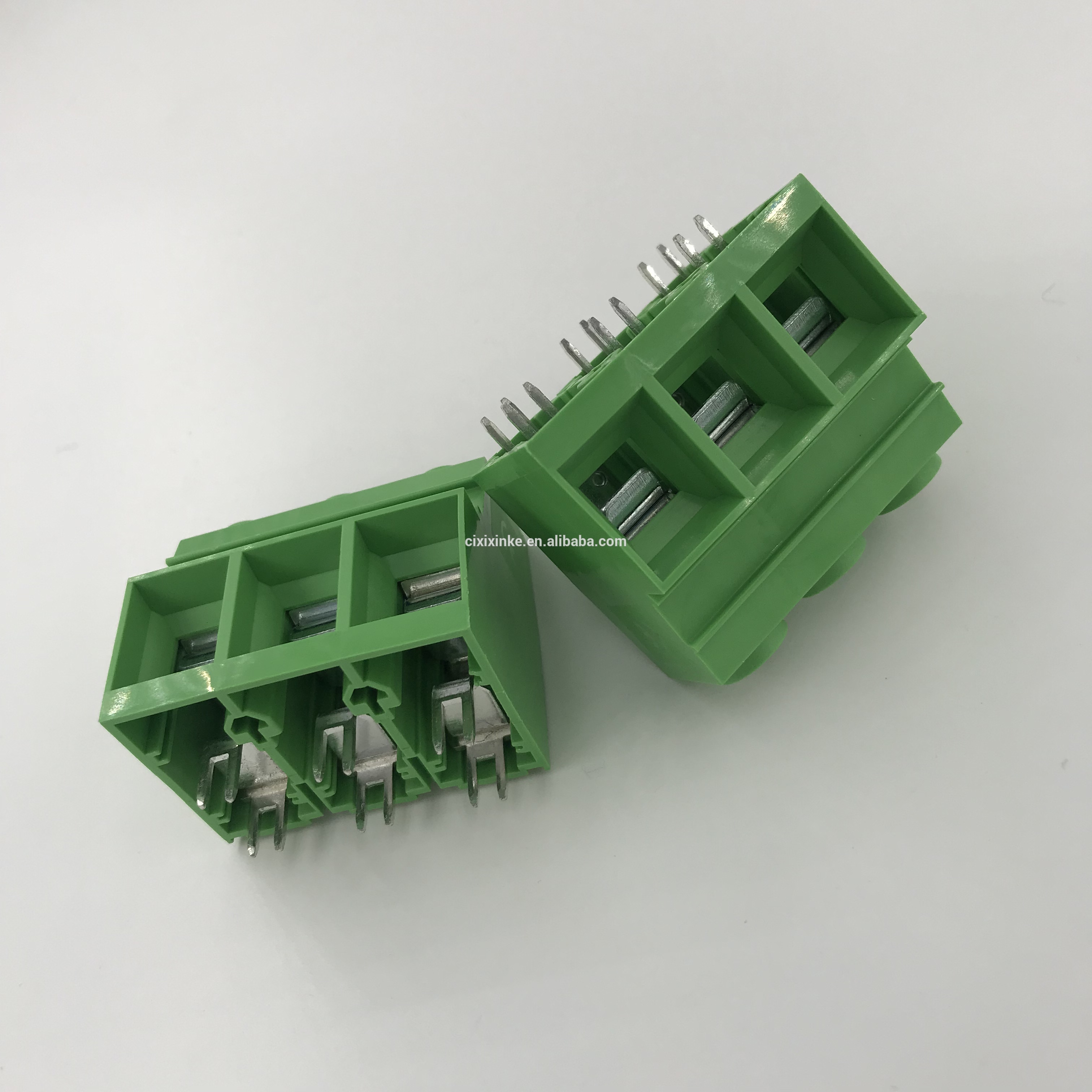

PCB mount screw terminal block XK137T-15.0-2P with large power distribution 15.0mm pitch 600V 125A brass cage 2 position

Produced by XinKe Electronics ,who is a high-quality, immediate delivery factory.There are many kinds of mould and large stock in the warehouse,we can meet the high requirements of customers.The product shell is made of insulating and flame-retardant material, which has a long service life and is safe and reliable. The terminal contacts are made of brass, which has good conductivity and high hardness.Plug-in structure, simple operation, and convenient wiring, our terminal connectors are deeply loved by customers and exported to the world.We have 2pin -24pin position contacts for this type,do not hesitate to contact us!

Product Description

Pitch:15.0mm;Poles:2P-6P;Rated Voltage/Current:600V/125A

terminal block


Plastic material: PA66.UL94V-0
pin header and cage: brass
Screw: M5,Steel,Cr3+ Zn plated
Rated voltage: 600V
Rated current: 125A
Wire range: 20-2AWG 35mm2
Withstanding voltage: AC3500V/1Min
Temp.: -40℃~+105℃
Strip length: 10mm
Maximum locking torque: 2Nm(17.5lb-in)
Pitch: 15.0mm



Packaging & Shipping

The package of XINKE has the the unity of inner and outer packing.

Also special cartons can be made for the customer if have any requirements.
